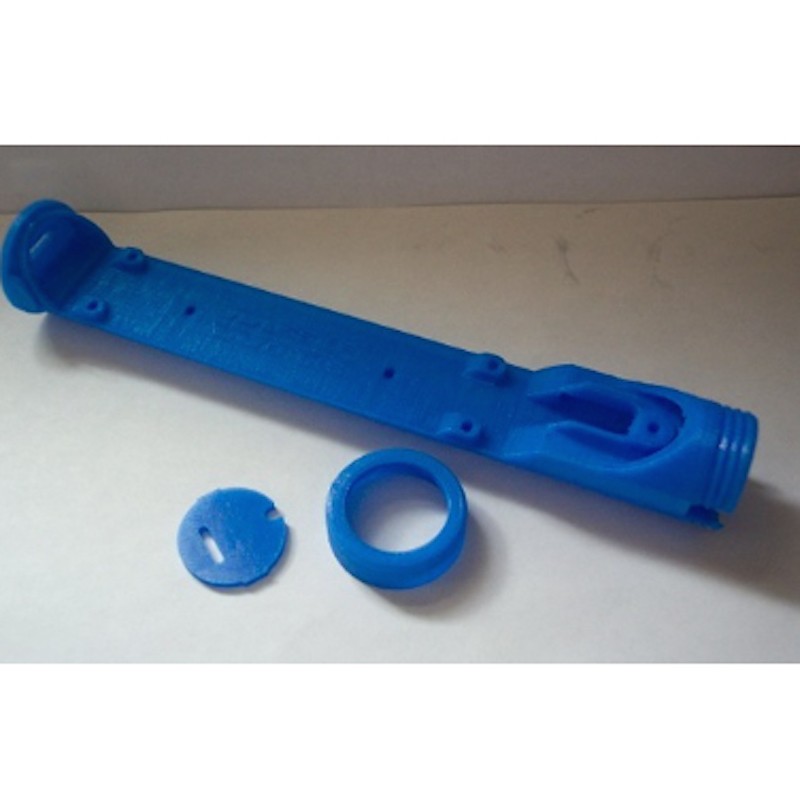

29mm S.M.A.R.T. Sled for RRC3

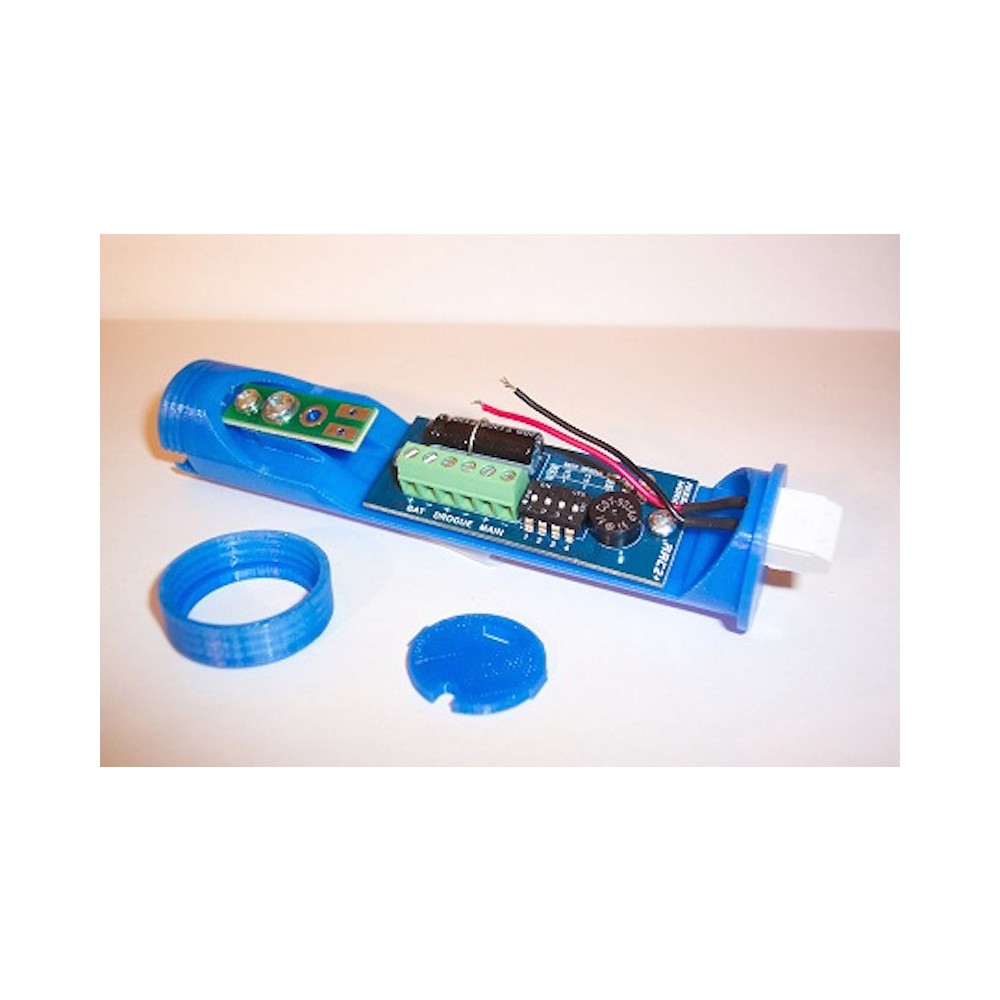

The S.M.A.R.T. Sled integrates directly into any nominal 29mm coupler tube. It uses our brand new "Screw Switch" for easy and reliable On/Off arming on the pad. The design also leverages the popular Sparkfun 400maH Li-Ion Battery for a small, lightweight and compact avionics sled.

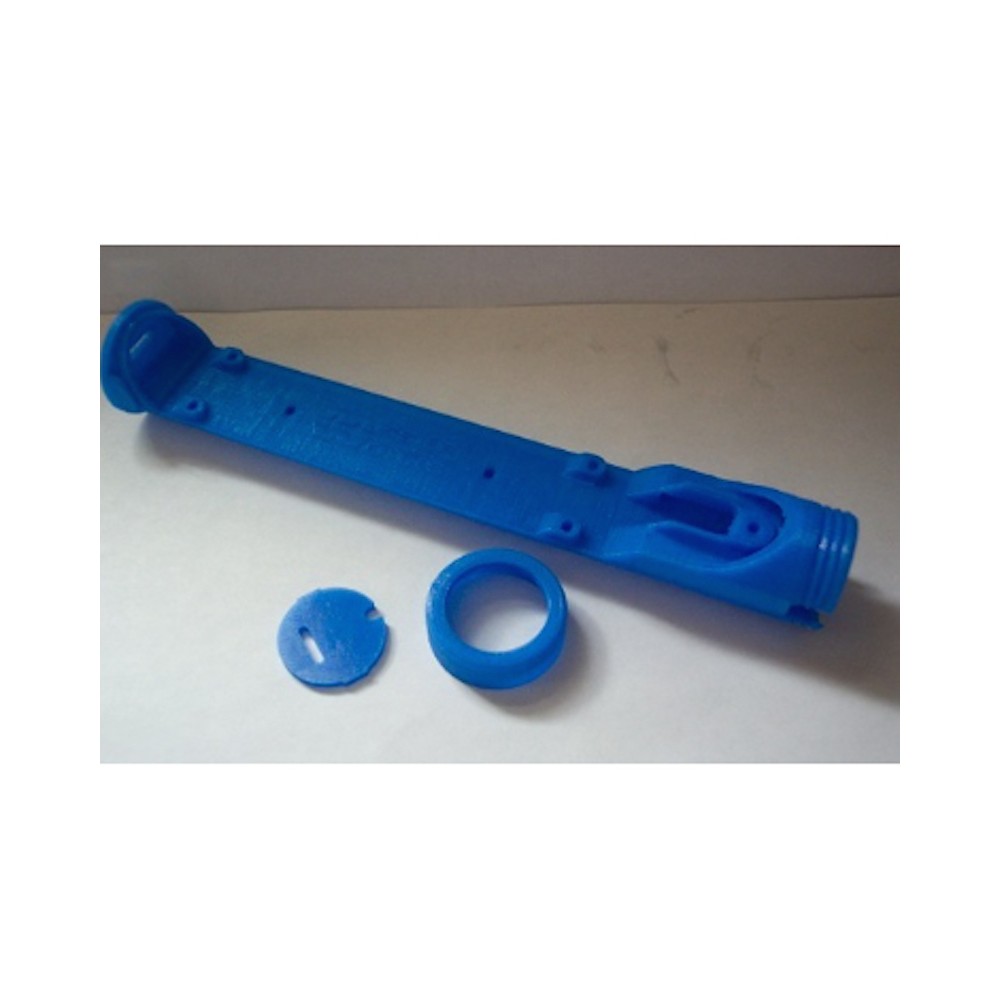

Each Bulkhead end of the S.M.A.R.T Sled has a pre-machined slot for a standard 5mm 2-point terminal strip. Wire up your terminals and glue directly onto each bulkhead. The aft bulkhead snaps into place underneath a threaded retaining ring which keeps the entire assembly captive.

The S.M.A.R.T. Sled provides 1/8" Kevlar harness anchoring by virtue of (2) integrated "nut wells". Tie your 1/8" Kevlar thru a #8 hex machine nut for quick and easy anchor points.

Features:
· Integrated Li-Ion battery slot.
· Easy battery removal/recharge.
· Integrated 6-32 Screw Switch mount.
· Modular design allows sled to be moved from rocket to rocket easily.
· Precision printed from durable and environmentally friendly PLA plastic.

Specs:
- Weight: ~17 grams.
- Sled Dimensions: 6.75" long x 0.9375" diameter.
- Mounting: 29mm nominal coupler or 38mm "Alti-Cone".
- Includes (5) #4 x 1/8" trilobular screws (RRC3 and Switch).
- Includes JST PH series mating connector for battery.
