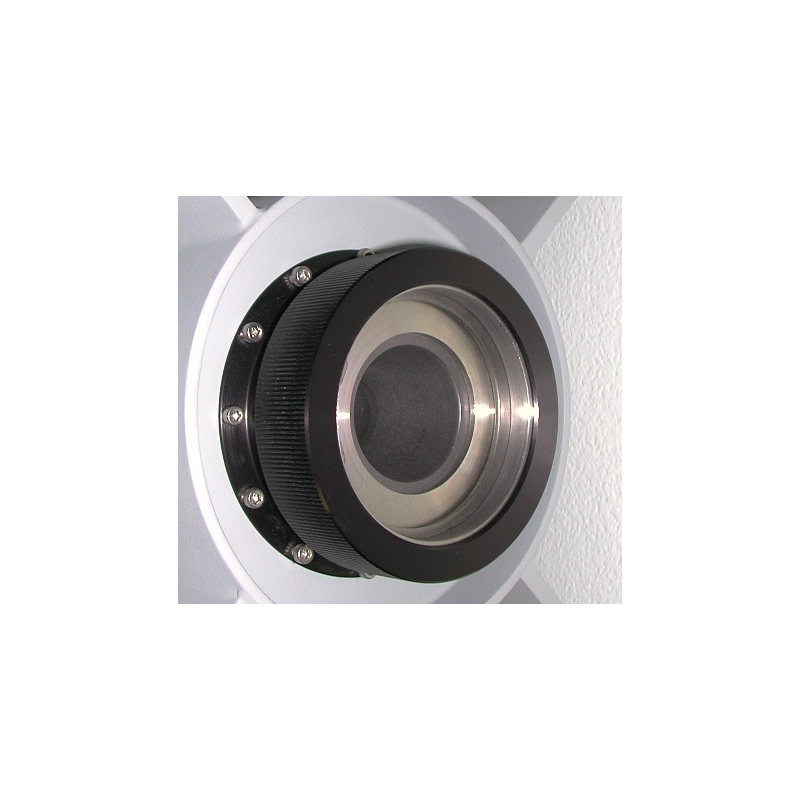

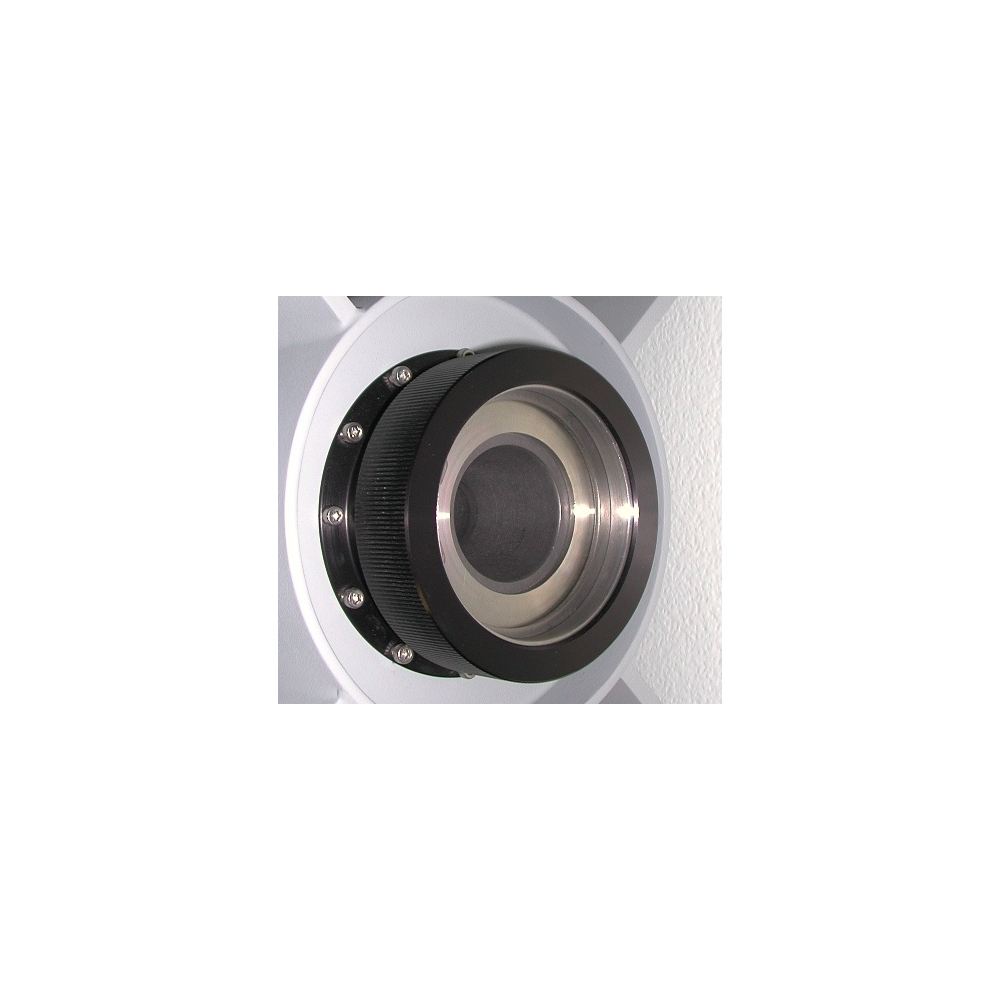

Flange mount retainer 54mm

Retainer Assembly, 54mm, Universal (with flange) Complete set of body and cap.

Flanged retainer for attachment on the lower centering ring of the rocket.

There is a flange on the retainer body that attaches to the lower centering ring instead of bonding to the motor mount tube. Stainless steel socket head screws and threaded inserts are included. Like our standard 24mm through 75mm motor retainers the flanged motor retainer assemblies have screw on caps for fast, tool-free motor change. Minimum airframe ID`s are as follows: RA54 = 3.000" min, RA75 = 3.875" min, RA98 = 5.000" min, RA150 = 8.500" min.

• Light-Weight Assembly For 54mm. Fastens too lower centering ring with flange and included hardware
• Precision Machined 6061-T6 Aluminum With Mil-Spec Type II Black Anodizing
• Large Quick-Turn Threads For Fast, Tool-Free Motor Change
• Installation: Mounts to lower centering ring with 6 threaded inserts and 6 stainless steel socket head cap screws.
• Just Slide Motor In And Thread On Cap, That`s It!
• Can Be Installed On Existing Rockets. Minimum airframe I.D. = 3 inch.
