AGM-256 Pit Bull

Dia.: 2.56"
Height: 35"
Weight: 29 oz.
MMT: 38mm
Chute: 24"
Payload: None
FinArray: 4 main and 4 canard
FinThickness: 0.06"
CertLevel: Pre-Cert & Level 1
Motors: F thru H
Comment: a great, scale-like
FinRoot: 5.25
FinSpan: 4
FinCode:

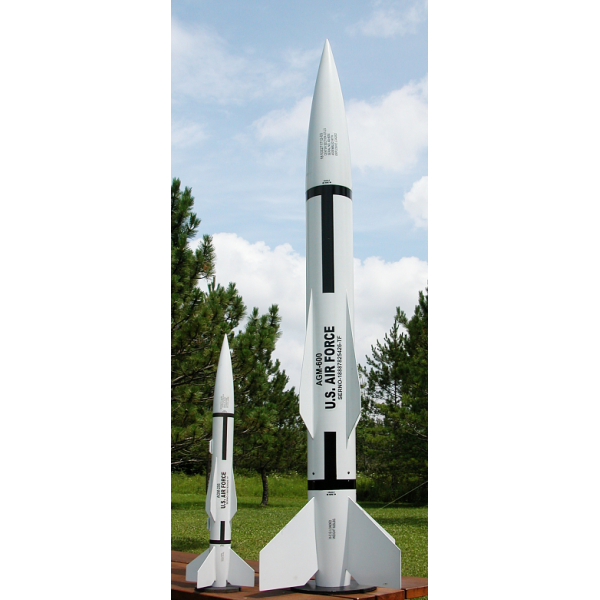

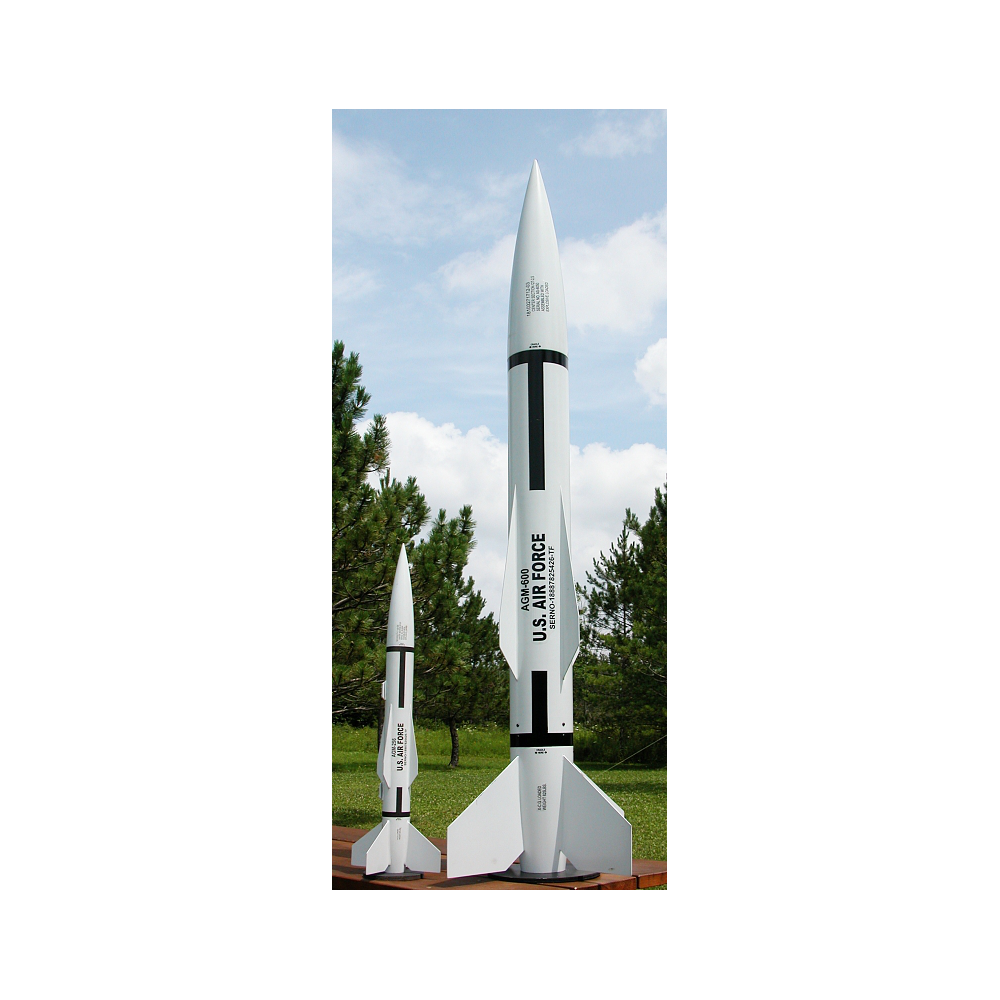

The AGM-256 Pit Bull features true Air Force like styling is sure to command attention on the flight line!

The Pit Bull is 35" tall and 2.6" in diameter. The Pit Bull weighs in at 29 ozs. This kit is also designed to fly on high impulse F and G motors for Pre-Cert flights and most H and I motors for Cert 1 flights. Pit Bull comes with a 38mm motor mount as standard equipment.

Click here for the kit instructions in PDF format; 2.0 Meg

Click here to download RockSim v8/9 data for this rocket

Let op! Dit is de kleine raket!
